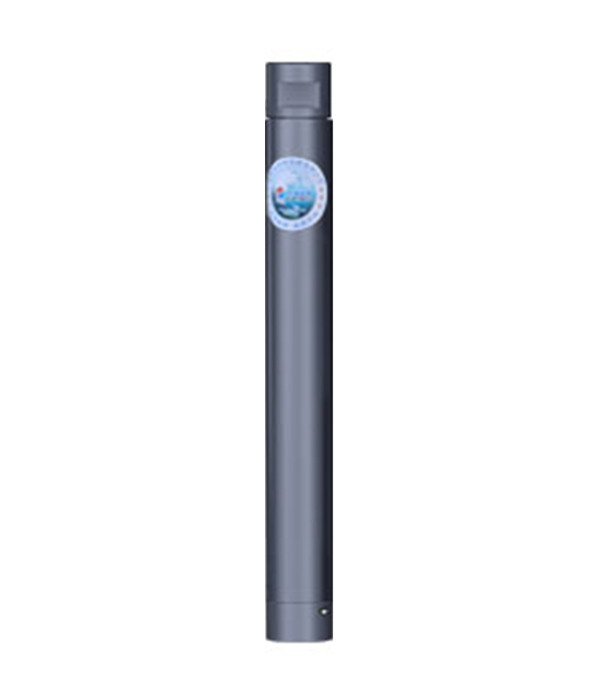

CP110 Lower Air Consumption Water Well Drilling DTH Hammer

CP110 Lower Air Consumption Water Well Drilling DTH Hammer

LOW AIR PRESSURE DTH hammer
CP SERIES
CP110
CP130
DESIGN HIGHLIGHTS
1.The length of CP series hammer is shorter than CIR series hammer, and longer than P series hammer.
2.The inner cylinder structure design increase the piston intensity.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Bit coupling type

Spline

        Hammer Length without bit:

723/737 (mm)

        Top sub thread:

F68*10 BOX

        Outside diameter:

99 (mm)

        Weight:

27.2 (KG)

        Bit diameter:

110-140(mm)

        Working Pressure:

7-13 (Bar)

        Air consumption:

7-12(M3/min)

        Bit shank:

KNSH-110/CIR110

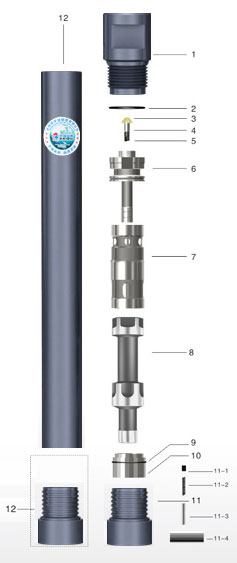

 Item Description

Part Number

 Item Description

 Part Number

                 1.Top Sub

CP110-01

                 8.Piston

CP110-08

                 2.O-Ring

CP110-02

                 9.Guide Sleeve

CP110-09

                 3.Cap

CP110-03

                 10.O-Ring

CP110-10

                 4.Check Valve

CP110-04

                 11.  Driver Sub   (CIR110)

CP110-11

                 5.Spring

CP110-05

                 12.Driver Sub  (P-110)

CP110-12

                 6.Air Distributor

CP110-06

                 13.Outer Sleeve

CP110-13

                 7.Inner Cylinder

CP110-07
