CP130 Fast Drilling Low Air Consuption Mining Rock Drilling DTH Hammer

CP130 Fast Drilling Low Air Consuption Mining Rock Drilling DTH Hammer

LOW AIR PRESSURE DTH hammer
CP SERIES
CP110
CP130
DESIGN HIGHLIGHTS
1.The length of CP series hammer is shorter than CIR series hammer, and longer than P series hammer.
2.The inner cylinder structure design increase the piston intensity.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Bit coupling type

Spline

        Hammer Length without bit:

767(mm)

        Top sub thread:

API  23/8"REG BOX

        Outside diameter:

116(mm)

        Weight:

35(KG)

        Bit diameter:

130-175(mm)

        Working Pressure:

7-13 (Bar)

        Air consumption:

9-13(M3/min)

        Bit shank:

CIR110/CIR130

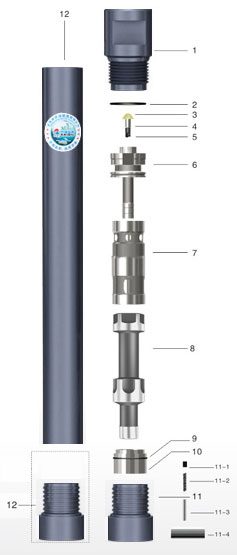

 Item Description

 Part Number

 Item Description

 Part Number

                 1.Top Sub

CP130-01

                 8.Piston

CP130-08

                 2. O-Ring

CP130-02

                 9.Guide Sleeve

CP130-09

                 3.Cap

CP130-03

                 10.O-Ring

CP130-10

                 4.Check Valve

CP130-04

                 11.Driver Sub (CIR110)

CP130-11

                 5.Spring

CP130-05

                 12.Driver Sub (P-110)

CP130-12

                 6.Air Distributor

CP130-06

                 13.Outer Sleeve

CP130-13

                 7.Inner Cylinder

CP130-07
