CIR60 Water Well Mining Drilling Rock DTH Bit DTH Hammer

CIR60 Water Well Mining Drilling Rock DTH Bit DTH Hammer

CIR SERIES
CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170

DESIGN HIGHLIGHTS
1.CIR series is steel valve type hammers designed for high performance at low operating air pressure.
2.CIR series hammers maximizes energy output and reduce service requirements.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
The patent of steel valve design increases the wok efficiency, it is 20% at least.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

777(mm)

        Top sub thread:

F32x8PIN

        Outside diameter:

53(mm)

        Weight:

7.5(KG)

        Bit diameter:

60(mm)

        Working Pressure:

4-10(Bar)

        Air consumption:

3-7(M3/min)

        Bit shank:

CIR60

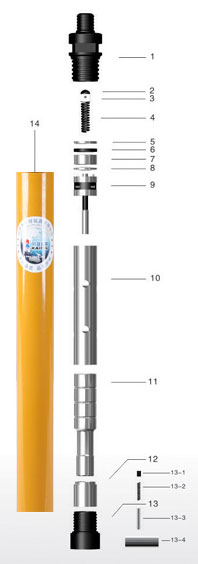

 Item Description

 Part Number

 Item Description

 Part Number

                 1.Top Sub

KQ60-01

                 8.Valve

KQ60-08

                 2.Cap

KQ60-02

                 9.Air Distributor

KQ60-09

                 3.Check Valve

KQ60-03

                 10.Inner Cylinder

KQ60-10

                 4.Spring

KQ60-04

                 11.Piston

KQ60-11

                 5.Shim

KQ60-0S

                 12.Guide Sleeve

KQ60-12

                 6.Rubber ring

KQ60-06

                 13.Driver Sub

KQ60-13

                 7.Valve cap

KQ60-07

                 14.Outer Sleeve

KQ60-14
