CIR76 Water Well Drilling Mining Rock Drilling DTH Down The Hole Bits And Hammer

CIR76 Water Well Drilling Mining Rock Drilling DTH Down The Hole Bits And Hammer

CIR SERIES
CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170
DESIGN HIGHLIGHTS
1.CIR series is steel valve type hammers designed for high performance at low operating air pressure.
2.CIR series hammers maximizes energy output and reduce service requirements.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
The patent of steel valve design increases the wok efficiency, it is 20% at least.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

777(mm)

        Top sub thread:

F48x10PIN

        Outside diameter:

66(mm)

        Weight:

13.5(KG)

        Bit diameter:

76(mm)

        Working Pressure:

4-10(Bar)

        Air consumption:

6-10(M3/min)

        Bit shank:

CIR70

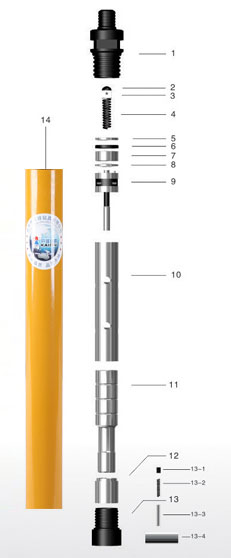

 Item Description

 Part Number

 Item Description

 Part Number

                 1.Top Sub

KQ76A-01

                 8.Valve

KQ76A-08

                 2.Cap

KQ76A-02

                 9.Air Distributor

KQ76A-09

                 3.Check Valve

KQ76A-03

                 10.Inner Cylinder

KQ76A-10

                 4.Spring

KQ76A-04

                 11.Piston

KQ76A-11

                 5.Shim

KQ76A-05

                 12.Guide Sleeve

KQ76A-12

                 6.Rubber ring

KQ76A-06

                 13.Driver Sub

KQ76A-13

                 7.Valve cap

KQ76A-07

                 14.Outer Sleeve

KQ76A-14
