KQ50 628mm Low Air Pressure DTH Hammers For Mining

KQ50 628mm Low Air Pressure DTH Hammers For Mining

KQ50 DTH Hammer has the advantages of high drilling efficiency, low failure rate and long service life.
Our KQ50 628mm low air pressure DTH hammers for mining can realize efficient and economical drilling even in all kinds of hard and abrasive rocks.
Product Features:
KQ50 DTH Hammer is mainly used for drilling blasting holes, landslide protection, dam site reinforcement, anchoring and other engineering holes, hydrology, water wells and other fields in mines, quarries, road construction and other projects.
1. Low drilling energy consumption, high impact frequency and high penetration rate.
2. Straightness and hole quality.
3. Because the structure is very simple, the components are reliable, the DTH hammer is convenient to maintain and the service life is longer.
4. Good washability.

Product DetailsOtherDownloadContact



        Hammer Length without bit:

628(mm)

        Top sub thread:

F32x8PIN

        Outside diameter:

44(mm)

        Weight:

5(KG)

        Bit diameter:

50(mm)

        Working Pressure:

4-10(Bar)

        Air consumption:

3-5(M3/min)

        Bit shank:

CIR50

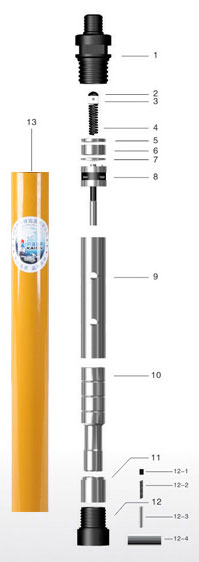

Item Description

Part Number

Item Description

Part Number

                 1.Top Sub

KQ50-01

                 8.Air Distributor

KQ50-08

                 2.Cap

KQ50-02

                 9.Inner Cylinder

KQ50-09

                  3.Check Valve

KQ50-03

                 10.Piston

KQ50-10

                 4.Spring

KQ50-04

                 11.Guide Sleeve

KQ50-11

                 5.Shim

KQ50-05

                 12.Driver Sub

KQ50-12

                 6.Valve cap

KQ50-06

                 13.Outer Sleeve

KQ50-13

                 7.Valve

KQ50-07
