CIR65 Steel Valve Design Patent Quarry Mining Low Air Pressure DTH Hammer

CIR65 Steel Valve Design Patent Quarry Mining Low Air Pressure DTH Hammer

CIR SERIES
CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170
DESIGN HIGHLIGHTS
1.CIR series is steel valve type hammers designed for high performance at low operating air pressure.
2.CIR series hammers maximizes energy output and reduce service requirements.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
The patent of steel valve design increases the wok efficiency, it is 20% at least.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact



        Hammer Length without bit:

745(mm)

        Top sub thread:

F42x10PIN

        Outside diameter:

61(mm)

        Weight:

13(KG)

        Bit diameter:

65(mm)

        Working Pressure:

4-10(Bar)

        Air consumption:

6-12(M3/min)

        Bit shank:

CIR65

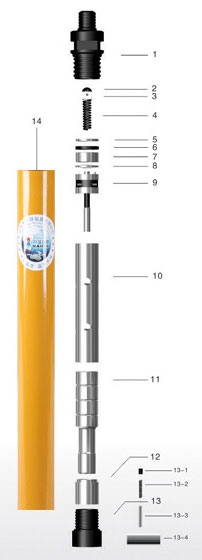

 Item Description

 Part Number

 Item Description

Part Number

                 1.Top Sub

KQ65-01

                 8.Valve

KQ65-08

                 2.Cap

KQ65-02

                 9.Air Distributor

KQ65-09

                 3.Check Valve

KQ65-03

                 10.Inner Cylinder

KQ65-10

                 4.Spring

KQ65-04

                 11.Piston

KQ65-11

                 5.Shim

KQ65-05

                 12.Guide Sleeve

KQ65-12

                 6.Rubber ring

KQ65-06

                 13.Driver Sub

KQ65-13

                 7.Valve cap

KQ65-07

                 14.Outer Sleeve

KQ65-14
