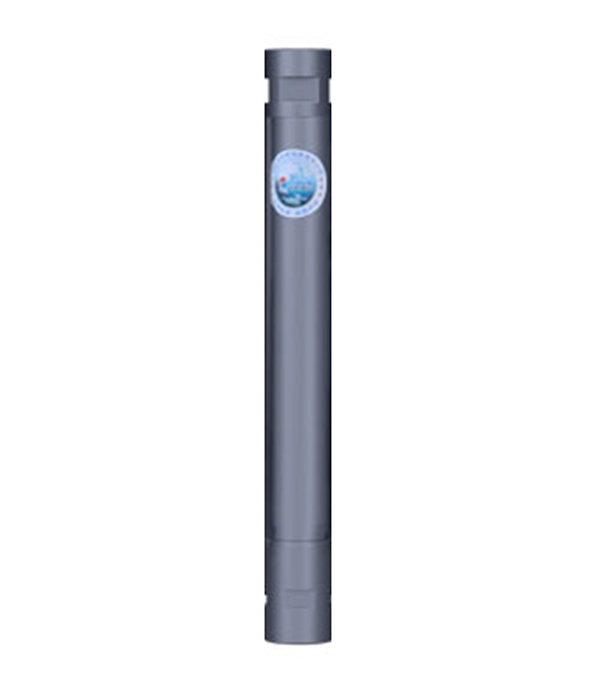

130P Bayonet Russia Type DTH Hammers 4.0kw For Mining Rock Drilling

130P Bayonet Russia Type DTH Hammers 4.0kw For Mining Rock Drilling

Product DetailsOtherDownloadContact

        Bit coupling type

Bayonet

        Hammer Length without bit:

655 (mm)

        Top sub thread:

F73x10 BOX

        Outside diameter:

115 (mm)

        Weight:

35.5(KG)

        Bit diameter:

130-160(mm)

        Working Pressure:

7-11 (Bar)

        Air consumption:

8-14(M3/min)

        Bit shank:

KNSH-130

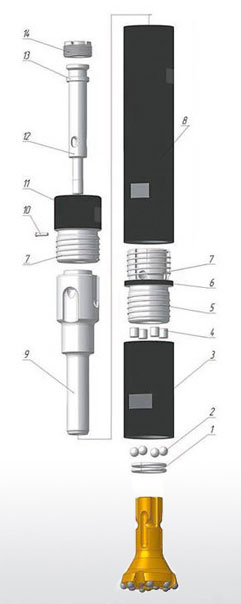

 Item Description

 Part Number

 Item Description

 Part Number

                 1.Reatainer Ring

130P-B-01

                 8.Outer Sleeve

130P-8-08

                 2.Ball

130P-B-02

                 9.Piston

130P-B-09

                 3.Driver Sub

130P-B-03

                 10.Retainer

130P-B 10

                 4.Roller

130P-B-04

                 11.Top Sub

130P-B-11

                 5.Thread

130P-B-05

                 12.Air distribution Tube

130P-B-12

                 6.Guide Sleeve

130P-B-06

                 13.Seat

130P-B-13

                 7.Thread

130P-B-07

                 14.Adjusting Nut

130P-B-14
