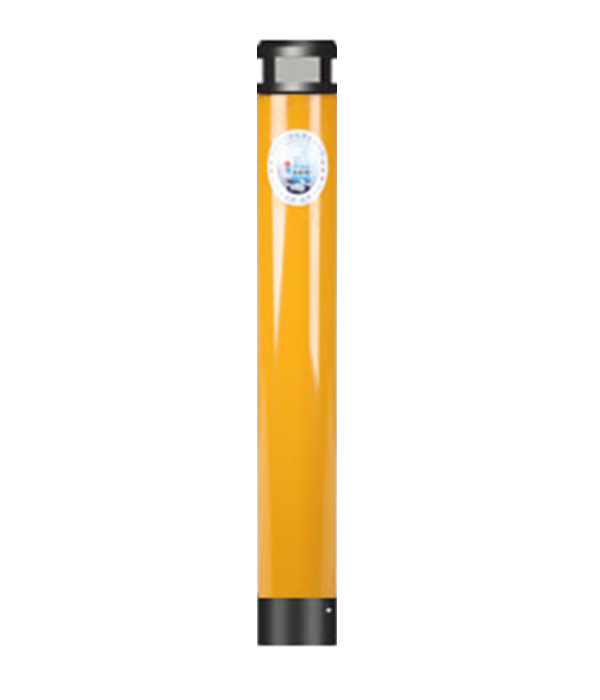

CIR150 Durable Drilling Down-The-Hole Hammer For Water Well Drilling

CIR150 Durable Drilling Down-The-Hole Hammer For Water Well Drilling

CIR SERIES
CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170
DESIGN HIGHLIGHTS
1.CIR series is steel valve type hammers designed for high performance at low operating air pressure.
2.CIR series hammers maximizes energy output and reduce service requirements.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
The patent of steel valve design increases the wok efficiency, it is 20% at least.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact



        Hammer Length without bit:

904(mm)

        Top sub thread:

F70x10 BOX

        Outside diameter:

136(mm)

        Weight:

70(KG)

        Bit diameter:

150-200(mm)

        Working Pressure:

5-10(Bar)

        Air consumption:

10-16(M3/min)

        Bit shank:

CIR150

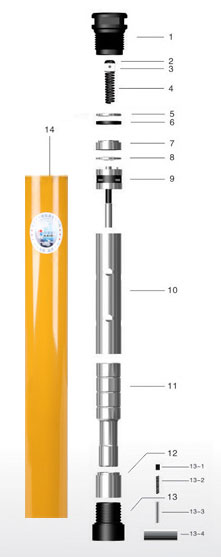

 Item Description

 Part Number

Item Description

 Part Number

                 1.Top Sub

KQ150B-01

                 8.Valve

KQ150B-08

                 2.Cap

KQ150B-02

                 9.Air Distributor

KQ150B-09

                 3.Check Valve

KQ1508-03

                 10.Inner Cylinder

KQ1S0B-10

                 4.Spring

KQ150B-04

                 11.Piston

KQ150B-11

                 5.Shim

KQ150B-0S

                 12.Guide Sleeve

KQ150B-12

                 6.Rubber ring

KQ150B-06

                 13.Driver Sub

KQ150B-13

                 7.Valve cap

KQ1508-07

                 14.Outer Sleeve

KQ150B-14
