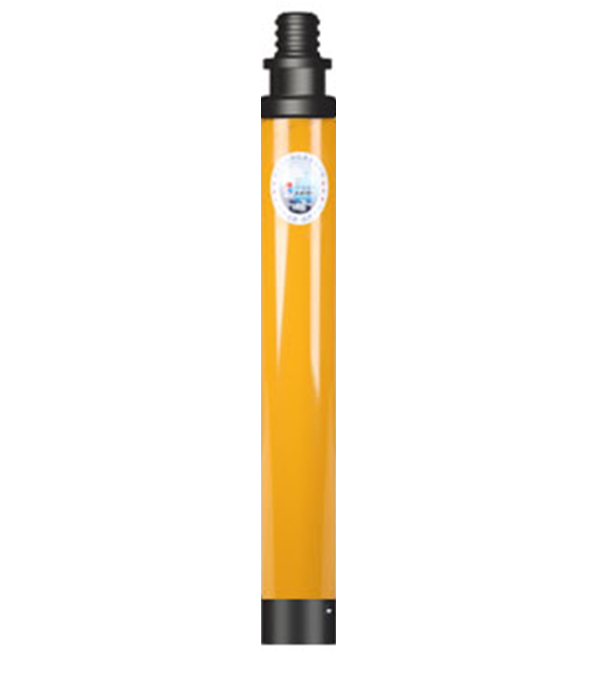

Kaiqiu CIR170 DTH Hammer For Construction With Long Lifespan

Kaiqiu CIR170 DTH Hammer For Construction With Long Lifespan

CIR SERIES
CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170
DESIGN HIGHLIGHTS
1.CIR series is steel valve type hammers designed for high performance at low operating air pressure.
2.CIR series hammers maximizes energy output and reduce service requirements.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
The patent of steel valve design increases the wok efficiency, it is 20% at least.
APPLICATIONS
Water Well     Mining   Construction   Quarry
PREV：CIR150 Durable Drilling Down-The-Hole Hammer For Water Well Drilling
NEXT：110P Bayonet Russia Type DTH Hammers 2.8kw For Mining Rock Drilling

Product DetailsOtherDownloadContact

        Hammer Length without bit:

1030(mm)

        Top sub thread:

F100x28PIN

        Outside diameter:

156(mm)

        Weight:

96(KG)

        Bit diameter:

170-250(mm)

        Working Pressure:

5-10(Bar)

        Air consumption:

12-18(M3/min)

        Bit shank:

CIR170

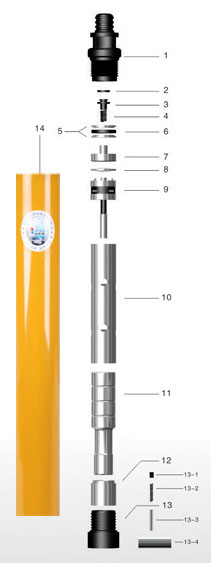

 Item Description

 Part Number

Item Description

Part Number

                 1.Top Sub

                 KQ170A-01

                 8.Valve

                 KQ170A-08

                 2.Cap

                 KQ170A-02

                 9.Air Distributor

                 KQ170A-09

                 3.Check Valve

                 KQ170A-03

                 10.Inner Cylinder

                 KQ170A-10

                 4.Spring

                 KQ170A-04

                 11.Piston

                 KQ170A-11

                 5.Pressure lining

                 KQ170A-05

                 12.Guide Sleeve

KQ170A-12

                 6.Rubber ring

                 KQ170A-06

                 13.Driver Sub

KQ170A-13

                 7.Valve cap

                 KQ170A-07

                 14.Outer Sleeve

KQ170A-14
