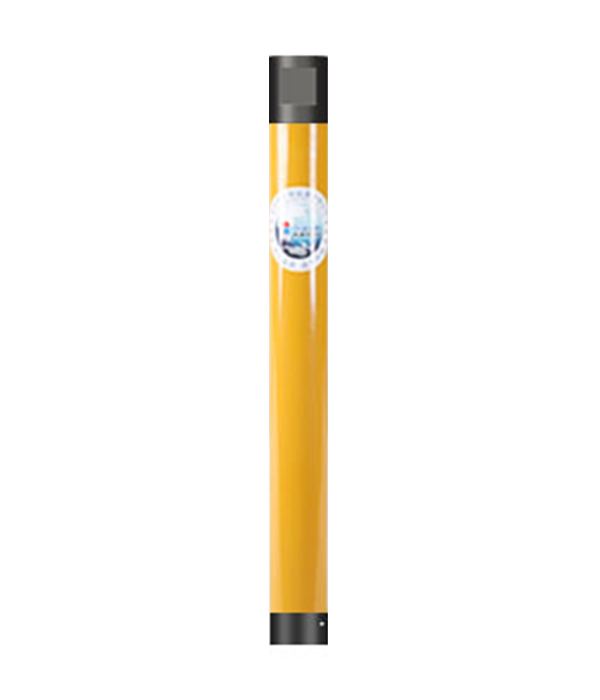

CIR130 DTH Hammer Martillos For Water Well Mining Quarry Rock Drilling

CIR130 DTH Hammer Martillos For Water Well Mining Quarry Rock Drilling

CIR SERIES
CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170
DESIGN HIGHLIGHTS
1.CIR series is steel valve type hammers designed for high performance at low operating air pressure.
2.CIR series hammers maximizes energy output and reduce service requirements.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
The patent of steel valve design increases the wok efficiency, it is 20% at least.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

882(mm)

        Top sub thread:

API 23/8"REG BOX

        Outside diameter:

112(mm)

        Weight:

48.5(KG)

        Bit diameter:

130-175(mm)

        Working Pressure:

5-10(Bar)

        Air consumption:

7-12(M3/min)

        Bit shank:

CIR110/CIR130

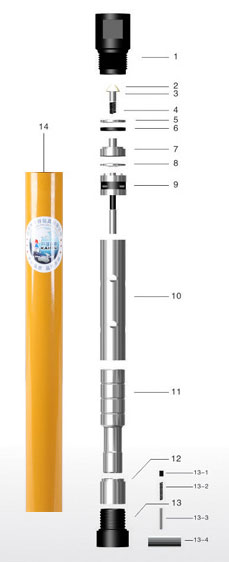

Item Description

 Part Number

Item Description

 Part Number

                 1.Top Sub

KQ130B-01

                 8.Valve

KQ130B-08

                 2.Cap

KQ130B-02

                 9.Air Distributor

KQ130B-09

                 3.Check Valve

KQ130B-03

                 10.Inner Cylinder

KQ130B-10

                 4.Spring

KQ130B-04

                 11.Piston

KQ130B-11

                 5.Shim

KQ130B-0S

                 12.Guide Sleeve

KQ130B-12

                 6.Rubber ring

KQ130B-06

                 13.Driver Sub

KQ130B-13

                 7.Valve cap

KQ130B-07

                 14.Outer Sleeve

KQ130B-14
