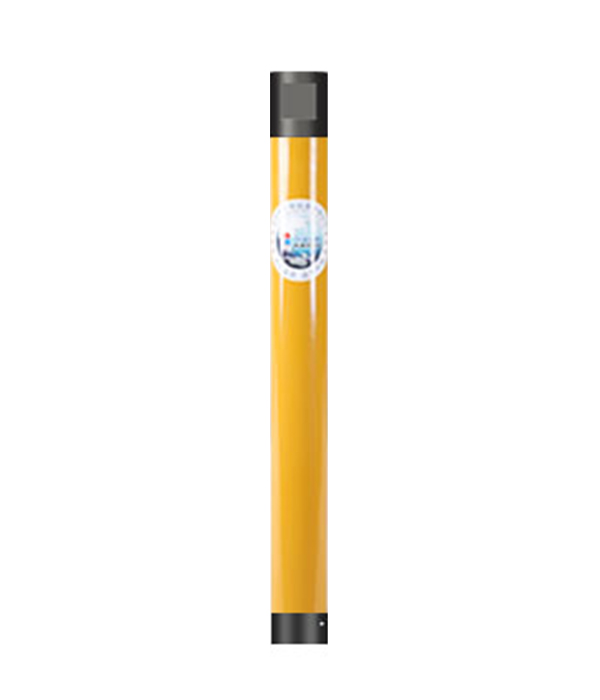

CIR110 5-7 Bar Low Air Pressure DTH Hammer And Bit For Water Well Rock

CIR110 5-7 Bar Low Air Pressure DTH Hammer And Bit For Water Well Rock

CIR SERIES
CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170
DESIGN HIGHLIGHTS
1.CIR series is steel valve type hammers designed for high performance at low operating air pressure.
2.CIR series hammers maximizes energy output and reduce service requirements.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
The patent of steel valve design increases the wok efficiency, it is 20% at least.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

840 (mm)

        Top sub thread:

API 23/8"REG BOX

        Outside diameter:

98(mm)

        Weight:

33(KG)

        Bit diameter:

110-150(mm)

        Working Pressure:

5-10(Bar)

        Air consumption:

7-12(M3/min)

        Bit shank:

CIR110

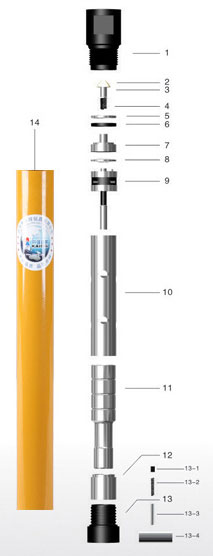

 Item Description

 Part Number

 Item Description

 Part Number

                 1.Top Sub

KQ110B-01

                 7.Valve

KQ110B-08

                 2.Cap

KQ110B-02

                 8.Air Distributor

KQ110B-09

                 3.Check Valve

KQ110B-03

                 9.Inner Cylinder

KQ110B-10

                 4.Spring

KQ110B-04

                 10.Piston

KQ110B-11

                 5.Rubber ring

KQ110B-06

                 11.Driver Sub

KQ110B-13

                 6.Valve cap

KQ110B-07

                 12.Outer Sleeve

KQ110B-14
