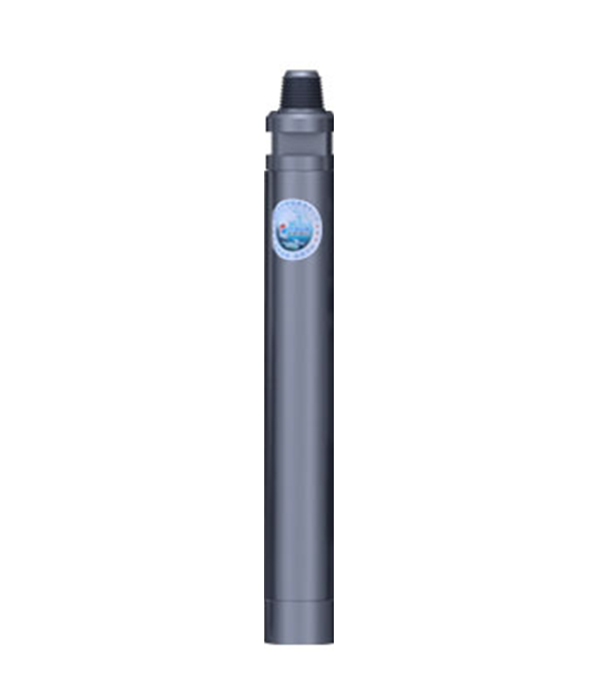

KQ8 High Air Pressure DTH Hammer For Water Well Mining Rock Drilling

KQ8 High Air Pressure DTH Hammer For Water Well Mining Rock Drilling

HIGH AIR PRESSURE DTH hammer
DHD SERIES
DHD3.5/DHD340/DHD350/DHD360/DHD380
QL40/QL50/QL60/QL80
MISSION40/MISSION50/MISSION60/MISSION80
DESIGN HIGHLIGHTS
1. DHD/QL/MISSION series is a valve less type hammers designed for high performance at low operating air pressure.
2. Suitable bits have a strong robust design without foot valve to withstand heavy duty application.
3. DHD/QL/MISSION series hammers maximizes energy output and reduces service requirements.
4. Wear sleeve is not reversible.
5.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
1.A built-in choke facility allows the driller to adjust the volume of air through the hammer to optimize cuttings evacuation.
2.Unique internal mounting of liner eliminates the need for seating ring.
3.Fewer internal components minimize service requirements.
4.Multi-start threads on backhead and chuck ensure easy coupling / uncoupling of hammer.
5.Excellent for all types of drilling applications typically for water well drilling and geothermal applications.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

         Hammer Length without bit:

1247 (mm)

         Top sub thread:

API 41/2"REG PIN

         Outside diameter:

180(mm)

         Weight:

174(KG)

         Bit diameter:

195-254(mm)

         Working Pressure:

12-24(Bar)

         Air consumption:

15-28(M3/min)

         Bit shank:

KQ8

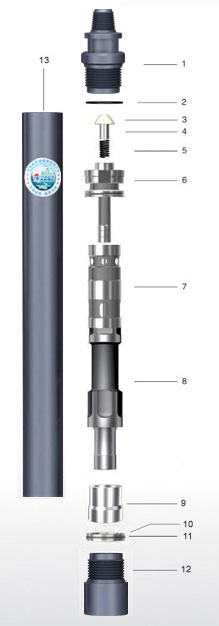

Item Description

Part Number

Item Description

Part Number

                1.Top Sub

KQ8-01

                8.Piston

KQ8-08

                2.O-Ring

KQ8-02

                9.Guide Sleeve

KQ8-09

                3.Cap

KQ8-03

                10.Bit Retainer Ring

KQ8-10

                4.Check Valve

KQ8-04

                 11.O-Ring

KQ8-11

                5.Spring

KQ8-05

                 12.Driver Sub

KQ8-12

                6.Air Distributor

KQ8-06

                 13.Outer Sleeve

KQ8-13

                 7.Inner Cylinder

KQ8-07
