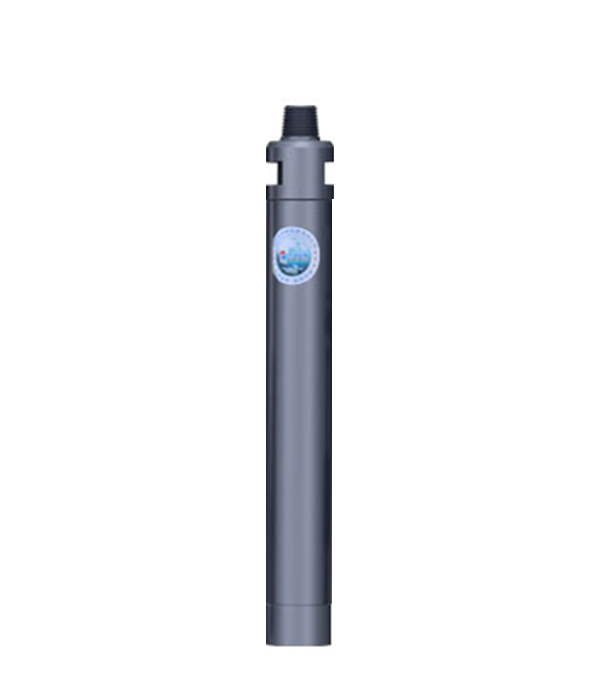

KQ6 High Air Pressure DTH Hammer For Water Well Mining Rock Drilling

KQ6 High Air Pressure DTH Hammer For Water Well Mining Rock Drilling

HIGH AIR PRESSURE DTH hammer
DHD SERIES
DHD3.5/DHD340/DHD350/DHD360/DHD380
QL40/QL50/QL60/QL80
MISSION40/MISSION50/MISSION60/MISSION80
DESIGN HIGHLIGHTS
1. DHD/QL/MISSION series is a valve less type hammers designed for high performance at low operating air pressure.
2. Suitable bits have a strong robust design without foot valve to withstand heavy duty application.
3. DHD/QL/MISSION series hammers maximizes energy output and reduces service requirements.
4. Wear sleeve is not reversible.
5.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
1.A built-in choke facility allows the driller to adjust the volume of air through the hammer to optimize cuttings evacuation.
2.Unique internal mounting of liner eliminates the need for seating ring.
3.Fewer internal components minimize service requirements.
4.Multi-start threads on backhead and chuck ensure easy coupling / uncoupling of hammer.
5.Excellent for all types of drilling applications typically for water well drilling and geothermal applications.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

1108(mm)

        Top sub thread:

API 31/2"REG PIN

        Outside diameter:

126 (mm)

        Weight:

110(KG)

        Bit diameter:

165-203(mm)

        Working Pressure:

12-24(Bar)

        Air consumption:

12-22(M3/min)

        Bit shank:

KQ6

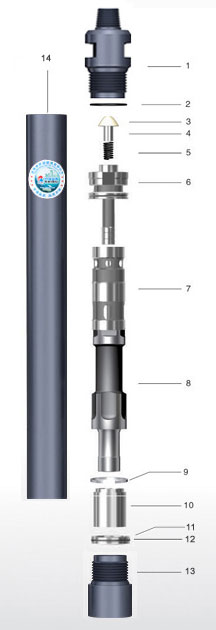

Item Description

Part Number

Item Description

Part Number

                1.Top Sub

KQ6-01

                8.Piston

KQ6 08

                2.O-Ring

KQ6-02

                 9.Jump ring

KQ6-09

                3.Cap

KQ6-03

                 10.Guide Sleeve

KQ6-10

                4.Check Valve

KQ6-04

                 11.Bit Retainer Ring

KQ6-11

                5.Spring

KQ6-05

                 12.O-Ring

KQ6-12

                6.Air Distributor

KQ6-06

                 13.Driver Sub

KQ6-13

                7.Inner Cylinder

KQ6-07

                 14.Outer Sleeve

KQ6-14
