R32 Threaded Button Bit/Rod/Coupling For Rock Drilling

R32 Threaded Button Bit/Rod/Coupling For Rock Drilling

Kaiqiu's complete range of Top Hammer drilling tools is designed to transmit intensive impact power into the rock, while at the same time reducing loss of energy. This results in increased production, reduced maintenance, and more sustainable operations. Simply reliable Top Hammer tools that you want to put on the front line of your operations.
Application:surface or underground, tunneling or quarrying, roads or construction
PREV：No next article
NEXT：No previous article

Product DetailsOtherDownloadContact

Bits

Diameter

Buttons.mm

 Angle

Flushing hole

 Part No.

mm

in

Front No Size

Gauge NO Size

Front

 Gauge

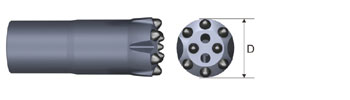

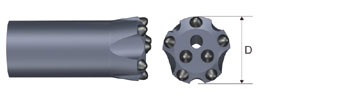

   Button bit

41 1 5/8" 2x 8 5x9 30° 1 2 41R32-28/59-T7-01
43 1 11/46" 2x 9 5x10 35° 1 2 43R32 29/510-77-01
45 1 3/4" 2x 9 5x11 35° 1 2 45R32 29/511-77-01
48 1 7/8" 2x 9 5x11 35° 1 2 48R32 29/511-77-01
51 2" 2x 10 5x12 35° 1 2 51R32 210/512-77-01


   Button bit
43 1 11/16" 2x 9 6x9 35° 2 2 43R32-29/69-T8-01
45 1 3/4" 2x 9 6x10 35° 2 2 45R32-29/610-T8-01

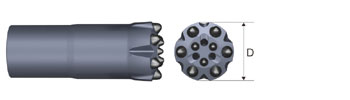

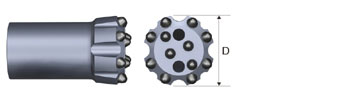

   Button bit
43 1 11/6" 3x 8 5x9 30° 3 1 43R32-38/69-T9-01
45 1 3/4" 3x 8 6x10 35° 3 1 45R32-38/610-T9-01
48 1 7/8" 3x 9 6x10 35° 3 1 48R32-39/610-T9-01
51 2" 3x 9 6x10 35° 3 1 51R32-39/610-T9-01
57 2 1/4" 3x 10 6x10 35° 3 1 57R32-310/610-T9-01
64 2 1/2" 3x 12 6x12 35° 3 1 64R32-312/612-T9-01


   Button bit
64 2 1/2" 4x 10 8x10 35° 2 2 64R32-410/810-T12-01
76 3" 4x 12 8x12 35° 2 2 76R32-412/812-T12-01



Bits

Diameter

Buttons.mm

 Angle

Flushing hole

 Part No.

mm

in

Front No Size

Gauge NO Size

Front

 Gauge

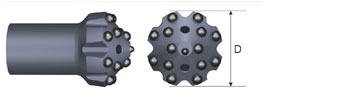

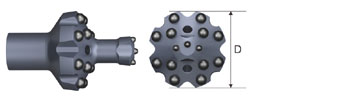

   Button bit
76 3"

1x 12

3x 12

 6x14 35° - 2 76R32-9-K-01
89 3 1/2"

1x 10

6x 12

 8x12 35° - 2 89R32-15-K-01
102 4"

3x 12

4x 12

 8x14 35° - 2 102R32-15-K-01


   Button bit
76 3"

1x 9

6x 12

 6x12 35° - 2 76R32-13-K-02
89 3 1/2"

3x 10

4x 12

 8x12 35° - 2 89R32-15-K-02
102 4"

3x 10

6x 12

 8x12 35° - 2 102R32-17-K-02



Drill Rod

Length

 Diameter Weight approx kg Part No.

mm

 Foot

mm

inch

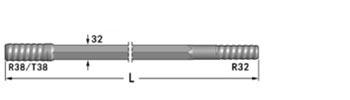

   Drifter rod，R/T38-Hex32-R32
   Flushing hole 9.6mm.

2400

3090

3400

4000

4310

4920

5530

7'10"

10'11/2"

11'13/4"

13'13/8"

14'11/2"

16'11/2"

18'11/2"

32

32

32

32

32

32

32

1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

15.3

19.8

21.7

25.5

27.5

31.3

35.2

7314-3601

7314-3602

7314-3603

7314-3604

7314-3605

7314-3606

7314-3607

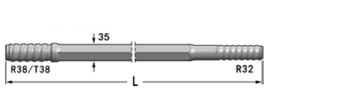

   Drifter rod，R/T38-Hex35-R32
   Flushing hole 9.5mm.



3090

3700

4000

4310

4920

5530

6100

10'11/2"

12'11/2"

13'13/8"

14'11/2"

16'11/2"

18'11/2"

20'

35

35

35

35

35

35

35

1 3/8

1 3/8

1 3/8

1 3/8

1 3/8

1 3/8

1 3/8

24.0

28.7

31.1

33.4

37.8

42.9

47.3

7314-3608

7314-3609

7314-3610

7314-3611

7314-3612

7314-3613

7314-3614

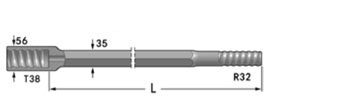

   Speedrod，T38-Hex35-R32
   Flushing hole 9.5mm



3700

4310

4920

5530

6400

12'11/2"

14'11/2"

16'11/2"

18'11/2"

21'

35

35

35

35

35

1 3/8

1 3/8

1 3/8

1 3/8

1 3/8

29.0

34.1

38.8

43.6

50.3

7314-3615

7314-3616

7314-3617

7314-3618

7314-3619



Coupling

Length

 Diameter Thread Weight approx kg Part No.

mm

 inch

mm

inch

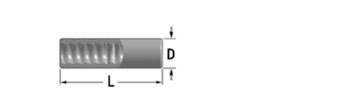

Coupling sleeves

170

190

6 3/4

7 1/2

55

55

2 5/32

2 5/32

R38

T38

1.8

2.0

31-R38-55-170-23

31-138-55-190-23

   Coupling sleeves of different diameter

150

160

160

160

170

180

210

170

180

210

190

6 1/6

6 1/4

6 1/4

6 1/4

6 3/4

7 1/16

8 1/4

6 3/4

7 1/16

6 1/4

7 1/2

45

45

45

55

55

55

55

55

56

56

63

1 3/4

1 3/4

1 3/4

2 5/32

2 5/32

2 5/32

2 5/32

2 1/8

2 1/8

2 1/8

2 33/64

R25-R32

R25-R32

R28-R32

R32-R38

R32-R38

R32-R38

R32-R38

R32-T38

R32-T38

R32-T38

R32-T45

1.1

1.2

1.2

1.8

2.0

2.2

2.8

2.1

2.2

2.8

3.2

33-R25/R32-45-150-23

33-R25/R32-45-160-23

33-R28/R32-45-160-23

33-R32/R38-55-160-23

33-R32/R38-55-170-23

33-R32/R38-55-180-23

33-R32/R38-55-210-23

33-R32/T38-56-170-23

33-R32/T38-56-180-23

33-R32/T38-56-210-23

33-R32/T45-63-190-23



Drill Rod

Length

 Diameter Weight approx kg Part No.

mm

 Foot

mm

inch

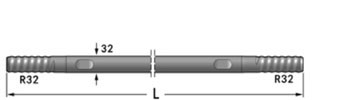

   Extension rod R32-Round32-R32
   Flushing hole 9.2mm
   Wrench flat 25.4mm

915

1000

1220

1830

2435

3050

3660

3'

3'33/8"

4'

6'

8'

10'

12'

32

32

32

32

32

32

32



1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

5.4

5.9

7.2

10.8

14.3

17.9

21.5

23932-R32-0915-23

23R32-R32-1000-23

23R32-R32-1220-23

23832-R32-1830-23

23932-R32-2435-23

23R32-R32-3050-23

23R32-R32-3660-23

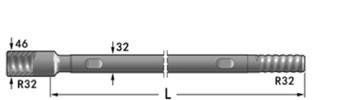

   MF-rod R32-Round32-832
   Flushing hole 9.2mm
   Wrench flat 25.4mm

915

1220

1525

1830

2435

3050

3660

3'

4'

5'

6'

8'

10'

12'

32

32

32

32

32

32

32

1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

1 1/4

6.2

8.0

9.8

11.6

15.1

18.7

22.3





24R32-R32/46-0915-23

24R32-R32/46-1220-23

24R32-R32/46-1525-23

24R32-R32/46-1830-23

24R32-R32/46-2435-23

24R32-R32/46-3050-23

24R32-R32/46-3660-23

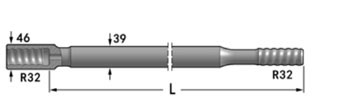

   Guide speedrod R32-Round39-R32
   Flushing hole 14.5mm

3050

3660

10'

12'

39

39

1 1/2

1 1/2

27.0

32.0

24R39-R32/46-3050-23

24R39-R32/46-3660-23

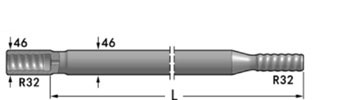

   Guide tube
   D46 for bits from 51-64mm

1220

1525

1830

3050

4'

5'

6'

10'

46

46

46

46

1 3/4

1 3/4

1 3/4

1 3/4

10.0

12.5

14.2

25.0

24R46-R32/46-1220-23

24R46-R32/46-1525-23

24R46-R32/46-1830-23

24R46-R32/46-3060-23



Coupling

Length

 Diameter Thread Weight approx kg Part No.

mm

 inch

mm

inch

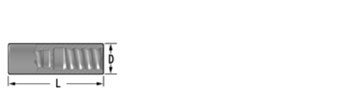

   Coupling sleeves

150

160

6 1/8

6 1/4

44

44

1 3/4

1 3/4

R32

T32

1.0

1.1

7314-3701

7314-3702
