M3 Medium Air Pressure DTH Hammer For Quarry Mining Rock Drilling

M3 Medium Air Pressure DTH Hammer For Quarry Mining Rock Drilling

MEDIUM AIR PRESSURE DTH hammer
KQM SERIES
KQM3
KQM4
DESIGN HIGHLIGHTS
1. We have patent of M series hammer.
2. Wear sleeve is not reversible.
3. All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
Due to its optimized and robust design,in addition the superior material makes the DTH hammer longer life, less air consumption and 15% higher penetration speed than conventional DTH hammer in the market
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

781 (mm)

        Top sub thread:

F48x10PIN

        Outside diameter:

82(mm)

        Weight:

24(KG)

        Bit diameter:

90-120(mm)

        Working Pressure:

10-13(Bar)

        Air consumption:

8-10(M3/min)

        Bit shank:

CIR90/M3

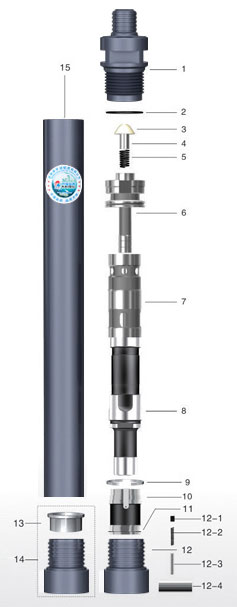

 Item Description

Part Number

Item Description

Part Number

                 1.Top Sub

KQM3-01

                 9.Jump Ring

KQM3-09

                 2.O-Ring

KQM3-02

                 10.Guide Sleeve

KQM3-10

                 3.Cap

KQM3-03

                 11.O-Ring

KQM3-11

                 4.Check Valve

KQM3-04

                 12.Driver Sub

KQM3-12

                 5.Spring

KQM3-05

                 13.Bit Retainer Ring

KQM3-13

                 6.Air Distributor

KQM3-06

                 14.Driver Sub

KQM3-14

                 7.Inner Cylinder

KQM3-07

                 15.Outer Sleeve

KQM3-15

                 8.Piston

KQM3-08
