        Bit coupling type

Bayonet

        Hammer Length without bit:

672 (mm)

        Top sub thread:

F72*10 BOX

        Outside diameter:

103x98 (mm)

        Weight:

25.5 (KG)

        Bit diameter:

110-140(mm)

        Working Pressure:

7-11(Bar)

        Air consumption:

7-12(M3/min)

        Bit shank:

KNSH-110

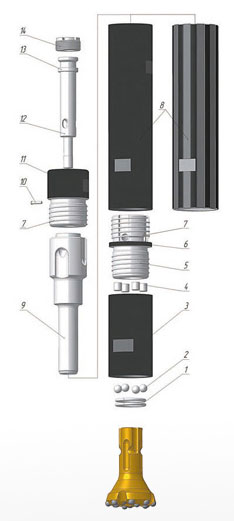

 Item Description

Part Number

 Item Description

 Part Number

                 1.Reatainer Ring

120P-B-01

                 8.Outer Sleeve

120P-B-08

                 2.Ball

120P-B-02

                 9.-Piston

120P-B-09

                 3.Driver Sub

120P-B03

                 10.Retainer

120P-B-10

                 4.Roller

120P-B-04

                 11.Top Sub

120P-B-11

                 5.Thread

120P-B-05

                 12.Air distribution Tube

120P-B-12

                 6.Guide Sleeve

120P-B-06

                 13.Seat

120P-B-13

                 7.Thread

120P-B-07

                 14.Adjusting Nut

120P-B-14
