Mission 80 Martillo Fast Penetration High Productivity 8 Inch DTH Hammer

Mission 80 Martillo Fast Penetration High Productivity 8 Inch DTH Hammer

HIGH AIR PRESSURE DTH hammer
DHD SERIES
DHD3.5/DHD340/DHD350/DHD360/DHD380
QL40/QL50/QL60/QL80
MISSION40/MISSION50/MISSION60/MISSION80
DESIGN HIGHLIGHTS
1. DHD/QL/MISSION series is a valve less type hammers designed for high performance at low operating air pressure.
2. Suitable bits have a strong robust design without foot valve to withstand heavy duty application.
3. DHD/QL/MISSION series hammers maximizes energy output and reduces service requirements.
4. Wear sleeve is not reversible.
5.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
1.A built-in choke facility allows the driller to adjust the volume of air through the hammer to optimize cuttings evacuation.
2.Unique internal mounting of liner eliminates the need for seating ring.
3.Fewer internal components minimize service requirements.
4.Multi-start threads on backhead and chuck ensure easy coupling / uncoupling of hammer.
5.Excellent for all types of drilling applications typically for water well drilling and geothermal applications.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

1330 (mm)

        Top sub thread:

API 41/2"REG PIN

        Outside diameter:

185(mm)

        Weight:

190(KG)

        Bit diameter:

195-254(mm)

        Working Pressure:

12-24(Bar)

        Air consumption:

15-28(M3/min)

        Bit shank:

Mission80

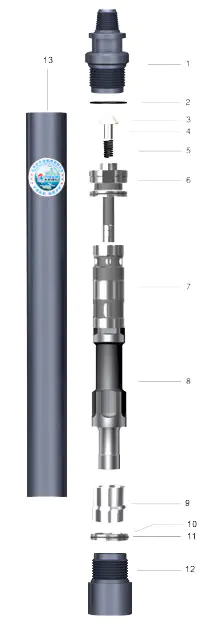

Item Description

Part Number

Item Description

Part Number

                 1.Top Sub

KM8A-01

                 8.Piston

KM8A-08

                 2.O-Ring

KM8A-02

                 9.Guide Sleeve

KM8A-09

                 3.Cap

KM8A-03

                 10.Bit Retainer Ring

KM8A-10

                 4.Check Valve

KM8A-04

                 11.O-Ring

KM8A-11

                 5.Spring

KM8A-05

                 12.Driver Sub

KM8A-12

                 6.Air Distributor

KM8A-06

                 13.Outer Sleeve

KM8A-13

                 7.Inner Cylinder

KM8A-07
