Mission40 Faster Drilling Rate Drilling Tools Working Pressure 1.5MPa Blast Hole 4

Mission40 Faster Drilling Rate Drilling Tools Working Pressure 1.5MPa Blast Hole 4" DTH Hammer

HIGH AIR PRESSURE DTH hammer
DHD SERIES
DHD3.5/DHD340/DHD350/DHD360/DHD380
QL40/QL50/QL60/QL80
MISSION40/MISSION50/MISSION60/MISSION80
DESIGN HIGHLIGHTS
1. DHD/QL/MISSION series is a valve less type hammers designed for high performance at low operating air pressure.
2. Suitable bits have a strong robust design without foot valve to withstand heavy duty application.
3. DHD/QL/MISSION series hammers maximizes energy output and reduces service requirements.
4. Wear sleeve is not reversible.
5.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
1.A built-in choke facility allows the driller to adjust the volume of air through the hammer to optimize cuttings evacuation.
2.Unique internal mounting of liner eliminates the need for seating ring.
3.Fewer internal components minimize service requirements.
4.Multi-start threads on backhead and chuck ensure easy coupling / uncoupling of hammer.
5.Excellent for all types of drilling applications typically for water well drilling and geothermal applications.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

947 (mm)

        Top sub thread:

API 23/8"REG PIN

        Outside diameter:

100(mm)

        Weight:

35.5(KG)

        Bit diameter:

115-140(mm)

        Working Pressure:

12-24(Bar)

        Air consumption:

8-14(M3/min)

        Bit shank:

Mission40

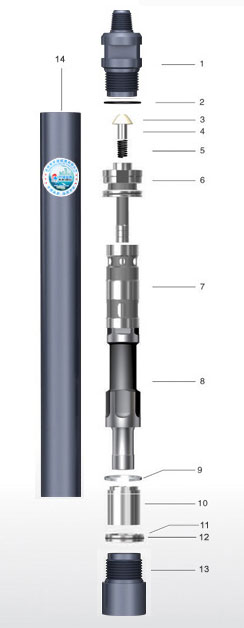

Item Description

Part Number

Item Description

Part Number

                 1.Top Sub

KM4A-01

                 8.Piston

KM4A-08

                 2.O-Ring

KM4A-02

                 9.Jump Ring

KM4A-09

                 3.Cap

KM4A-03

                 10.Guide Sleeve

KM4A-10

                 4.Check Valve

KM4A-04

                 11.Bit Retainer Ring

KM4A-11

                 5.Spring

KM4A-05

                 12.O-Ring

KM4A-12

                 6.Air Distributor

KM4A-06

                 13.Driver Sub

KM4A-13

                 7.Inner Cylinder

KM4A-07

                 14.Outer Sleeve

KM4A-14
