KD35A High Efficiency Quarry Mining Borehole Rock Drilling Tools DTH Drilling Hammer

KD35A High Efficiency Quarry Mining Borehole Rock Drilling Tools DTH Drilling Hammer

HIGH AIR PRESSURE DTH hammer
DHD SERIES
DHD3.5/DHD340/DHD350/DHD360/DHD380
QL40/QL50/QL60/QL80
MISSION40/MISSION50/MISSION60/MISSION80
DESIGN HIGHLIGHTS
1. DHD/QL/MISSION series is a valve less type hammers designed for high performance at low operating air pressure.
2. Suitable bits have a strong robust design without foot valve to withstand heavy duty application.
3. DHD/QL/MISSION series hammers maximizes energy output and reduces service requirements.
4. Wear sleeve is not reversible.
5.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
1.A built-in choke facility allows the driller to adjust the volume of air through the hammer to optimize cuttings evacuation.
2.Unique internal mounting of liner eliminates the need for seating ring.
3.Fewer internal components minimize service requirements.
4.Multi-start threads on backhead and chuck ensure easy coupling / uncoupling of hammer.
5.Excellent for all types of drilling applications typically for water well drilling and geothermal applications.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

899(mm)

        Top sub thread:

API 23/8"REG PIN

         Outside diameter:

82(mm)

        Weight:

25(KG)

        Bit diameter:

90-110(mm)

        Working Pressure:

12-24(Bar)

         Air consumption:

8-12(M/min)

         Bit shank:

DHD3.5

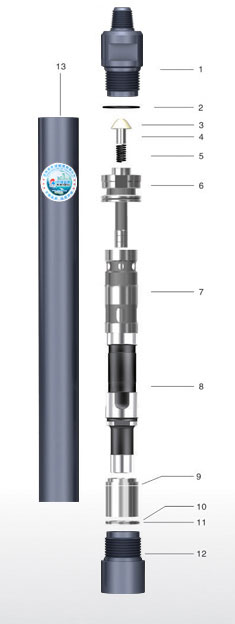

Item Description

Part Number

Item Description

Part Number

                1.Top Sub

K035N-01

                8. Piston

K035N-08

                2. O-Ring

KD35N-02

                9.Guide Sleeve

KD35N-09

                3.Cap

KD35N-03

                10.Bit Retainer Ring

KD35N-10

                4.Check Valve

KD35N-04

                11. O-Ring

KD35N-11

                5.Spring

KD35N-05

                12.Driver Sub

KD35N-12

                6. Air Distributor

KD35N-06

                13.Outer Sleeve

KD35N-13

                7.Inner Cylinder

KD35N-07
